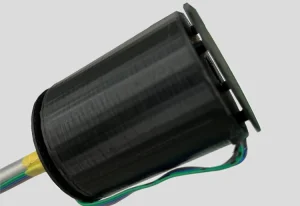

Compact, fast response wind speed sensor for measurement in the medium wind speed range (below 10 m/s).
The sensor can selectively measure wind speed in one direction due to the directional structure.
Products
Dimensions
Characteristic
Directivity
Output characteristic
Rating
| Item |
Contents |
Remarks |
| Type |
TP-MWD-M10 |
|
| Measured gas |
Air |
|
| Wind speed range |
0～10m/S |
*Depending on the attachment configuration |
| Power-supply voltage |
DC +3.3V |
Maximum rated DC 5V |
| Current consumption |
35mA |
(Reference value) |
| Response time |
60ms |
(Reference value) |
| Output signal |
1.15 ～ 3.2V |
|
| Operating temperature range |
10～55℃ |
|
| Storage temperature range |
5～100℃ |
|
Application examples
Weather observation, ventilation in tunnels, UAVs, drones etc.
