Micro Pressure Sensor

SEMITEC’s micro pressure sensor probe makes mounting and sensing possible in narrow spaces of equipment used for bio-therapeutics, inspection, etc.

Features

This sensor is a disposable medical device with pressure sensor and temperature sensor chips at the flexible probe tip, enabling simultaneous sensing of pressure and temperature.
By incorporating an ultra-small pressure sensor using our proprietary micro-machining technology and an Fμ thermistor, an evolution of the thin-film thermistor, we have made it possible to not only detect pressure but also to detect/compensate for temperature with high accuracy.

・Simultaneous pressure/temperature detection
・Probe tip diameter Φ1.0mm
・Overall length of the probe 1,000mm
・Flexible nylon tube exterior
・Composed of biocompatible materials


Sensor probe tip

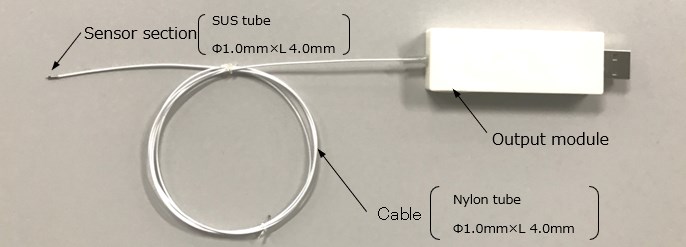

Appearance


Specification

Micro pressure sensor

power supply voltage 5.0V±0.5V
Operating pressure range 0~100mmHg
Output Analog voltage output

Temperature sensor (Thermistor)

Zero-power resistance (R25) 2.252kΩ±0.3%
B value (B25/85) 3978K±0.3%
Operating temperature range 0℃~70℃
Output Thermistor output
